Ball Base

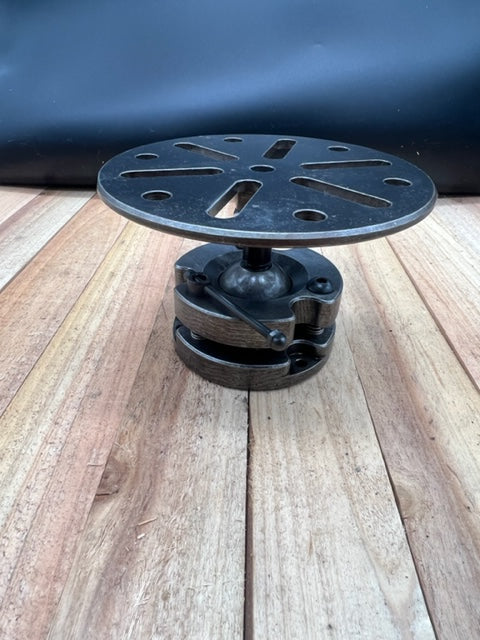

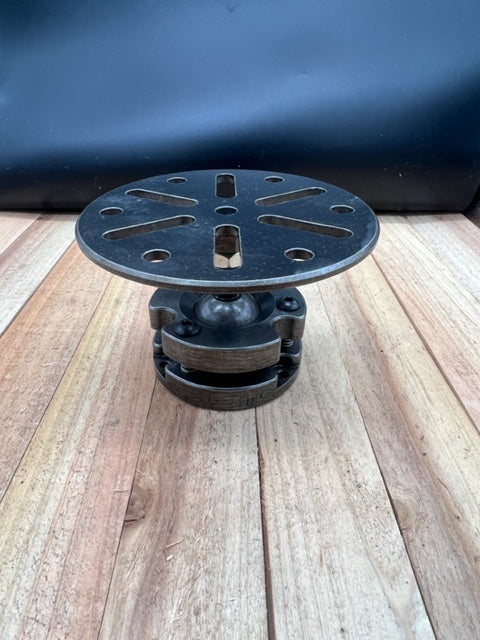

Ball Base – Adjustable Universal Vise Mount

Add versatility to your workbench with the TS Steelworks Ball Base. Designed to provide a stable, adjustable mounting platform for small bench vises, tooling, and workshop accessories.

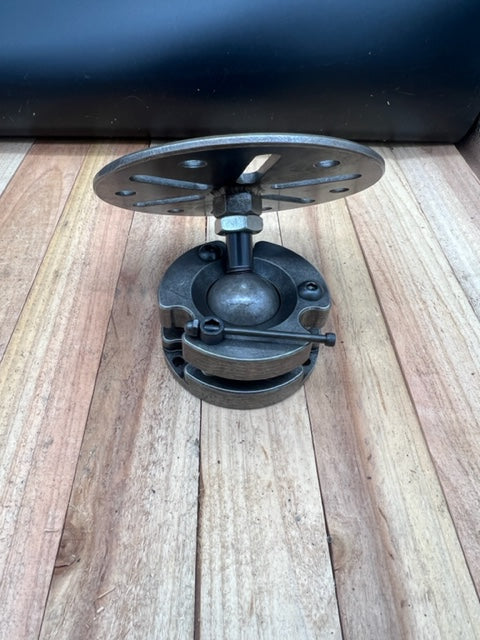

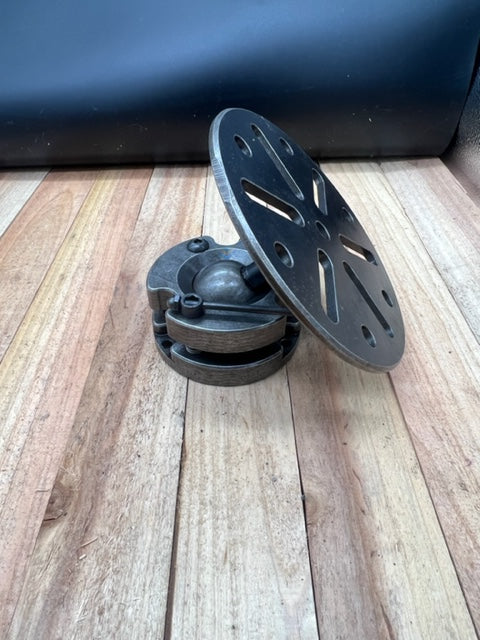

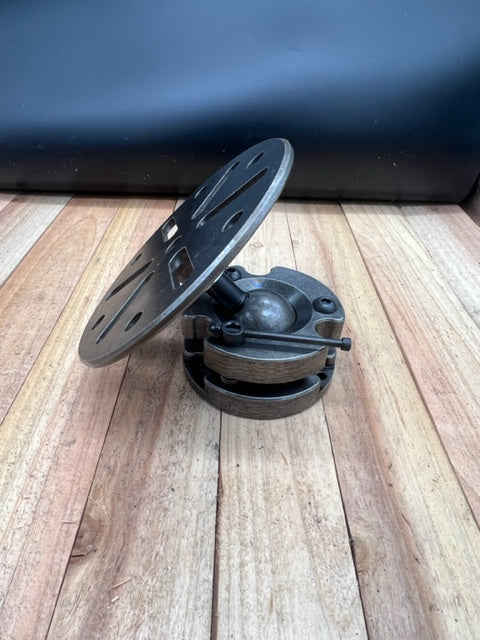

The ball-and-socket design allows the mounting plate to pivot around 45 degrees in any direction. Simply loosen the locking handle, position your work, and tighten it to secure the desired angle.

Features & Specifications:

• Overall height: 4½ inches

• Base diameter: 4¼ inches

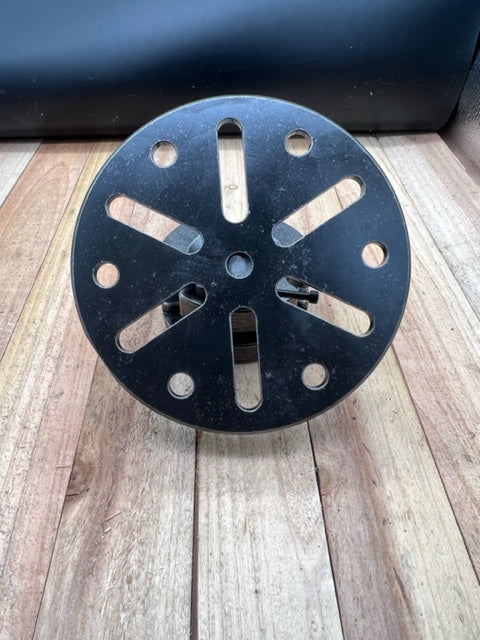

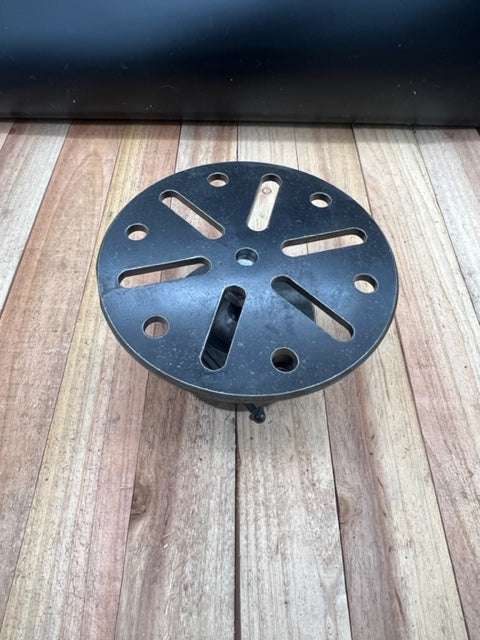

• Universal mounting plate: 7 inches in diameter

• Mounting slots: ½ inch wide

• Additional mounting holes: ½ inch diameter

• Adjustment: More than 45 degrees in all directions

• Threaded mounting stud: ¾”-10

• Adjustable ball-and-socket design with locking handle

One base. Multiple possibilities.

Whether you’re mounting a small bench vise or creating a custom workholding setup, this versatile base provides the flexibility to position your work where you need it.
